article: 313-6xv

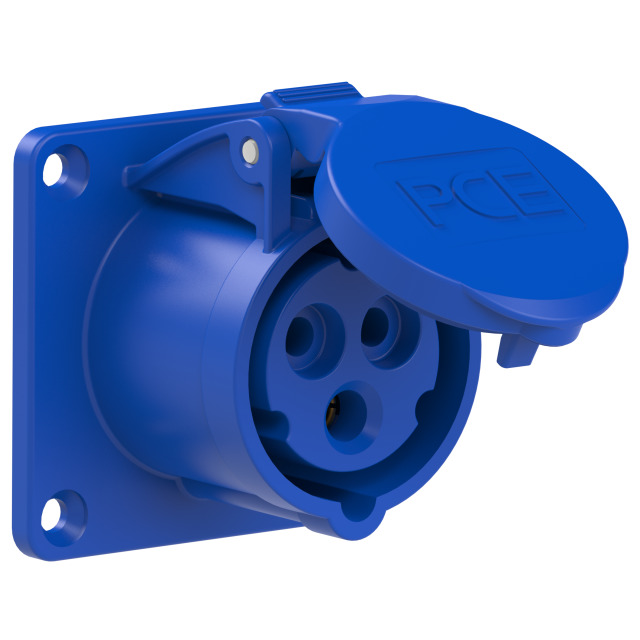

article description: CEE-flanged socket straight (70x70mm) 16A 3p 6h IP44/IP54 blue

description long:
CEE-flanged socket straight (70x70mm) 16A 3p
6h IP44/IP54 blue
housing material: PA6
rated current: 16A
number of poles: 3 (2P+PE)
clock-position: 6h
rated voltage/frequency: 200-250V~ / 50+60Hz
contacts: brass nickel plated
connection technology: screw terminals
dimensions (flange/fixing center): 70x70 mm / 56x56 mm
IP protection class: IP44/IP54

GTIN (EAN) 9003399041662
country of origin AT
customs number 85366990
net weight 0.115 kg
packaging quantitiy 10
ETIM 7.0 EC001317
IEC-amperage 16 A
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Number of poles 3
Clock hour position 6
Identification colour Blue
Degree of protection (IP) IP54
Connection system Screwed terminal
Angle of plug Straight
Material Plastic
Contact material CuZn
Surface finish contacts Nickel-plated
Flange size vertical 70 mm
Drill hole distance vertical 56 mm
Flange size horizontal 70 mm
Drill hole distance horizontal 56 mm
wire flexible 1-2,5 mm²
wire solid 1-4 mm²
contact screws 100 Ncm
dismantling length 50 mm
stripping length 10-12 mm
